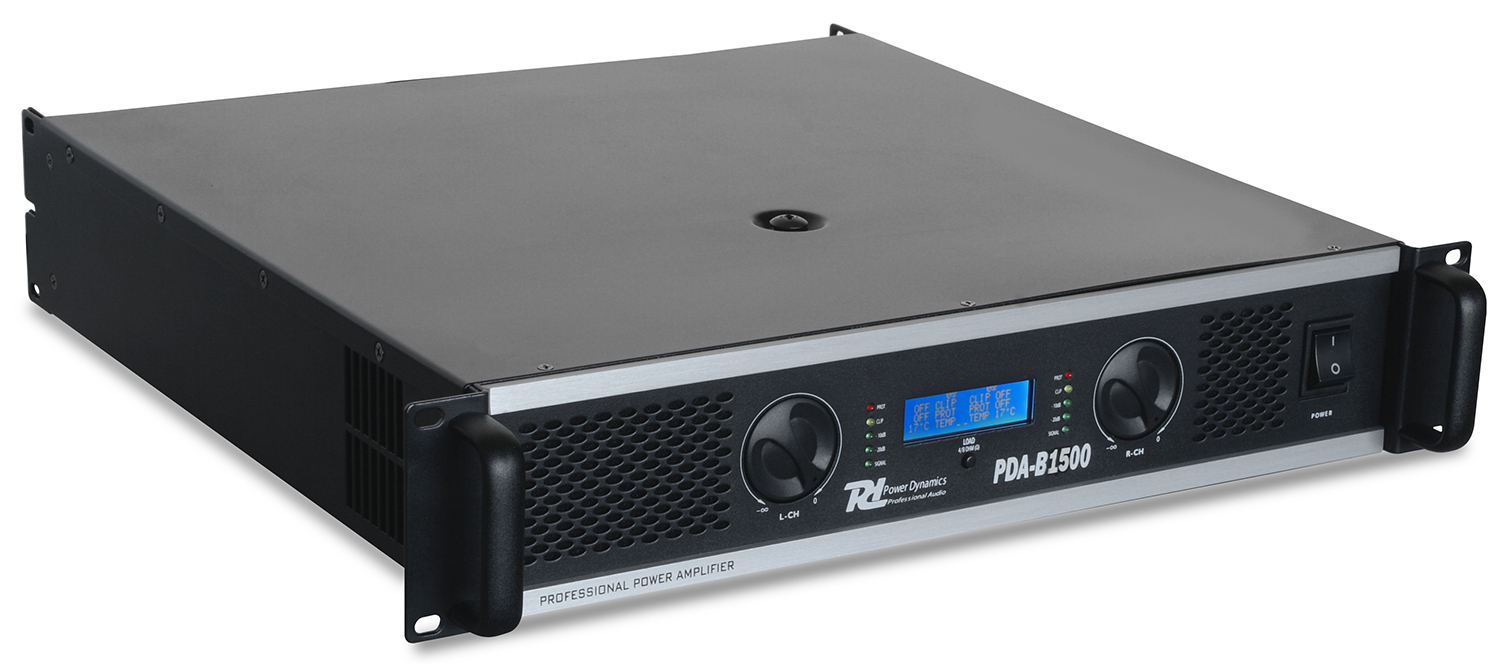

PDA-B1500 Professional Amplifier

Description Specifications Files 1 An Amplifier for professional use fitted with a strong front panel. With integrated 2-way crossover network and limiter. Very versatile due to high power reserves and temperature-controlled cooling fan. A robust construction suitable for heavy duty usage : DJ's, fixed installations and live performance. Brand: Power Dynamics Product colour: Black Output channels: 2 Output power: RMS @ 2 Ohm per channel: 1000W Output power: RMS @ 4 Ohm per channel: 750W Output power: RMS @ 8 Ohm per channel: 500W Output power: RMS @ 4 Ohm bridged: 2100W Output power: RMS @ 8 Ohm bridged: 1500W Input connections: 6.3mm Jack, XLR (3-pin) Output connections: NL-4 Frequency response: 10Hz - 20.000Hz Crosstalk105dB Signal-to-noise ratio95dB Damping Factor500 Slew rate: 60V/uS Input sensitivity line: 775mV - 1.2V Input impedance: 20 kOhm Power supply: 220-240VAC 50Hz Dimensions (L x W x H): 482 x 465 x 88mm (19" x 2HE) 19 Inch: Yes Weight (kg): 17.75 171.193_171.194_171.196_PowDyn AmplifierPDA_B Series_manual_V2.0.pdfDownload
