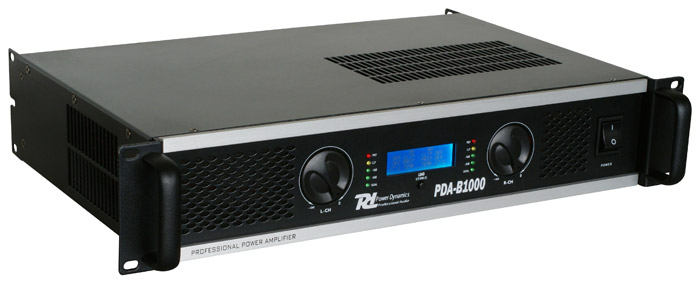

PDA-B1000 Professional Amplifier

Description Specifications Files 1 Amplifiers for professional use fitted with strong front panels. Very versatile due to high power reserves and temperature controlled cooling fans. A robust construction suitable for heavy duty usage : DJ's, fixed installations and live performance. Brand: Power Dynamics Product colour: Black Output channels: 2 Output power: RMS @ 4 Ohm per channel: 500W Output power: RMS @ 8 Ohm per channel: 350W Output power: RMS @ 8 Ohm bridged: 1000W Input connections: 6.3mm Jack, XLR (3-pin) Output connections: NL-4 Frequency response: 10Hz - 50.000Hz Crosstalk70dB Signal-to-noise ratio100dB Damping Factor350 Slew rate: 45V/uS Input sensitivity line: 775mV - 1.2V Input impedance: 20 kOhm Power supply: 220-240VAC 50Hz Dimensions (L x W x H): 482 x 100 x 330mm (19" x2U) 19 Inch: Yes Weight (kg): 10.9 171.190_171.192_PowDyn AmplifierPDA_B500-1000_manual_V1.2.pdfDownload
